ALTEA PLUS
Altea with a dedicated self-supporting structure

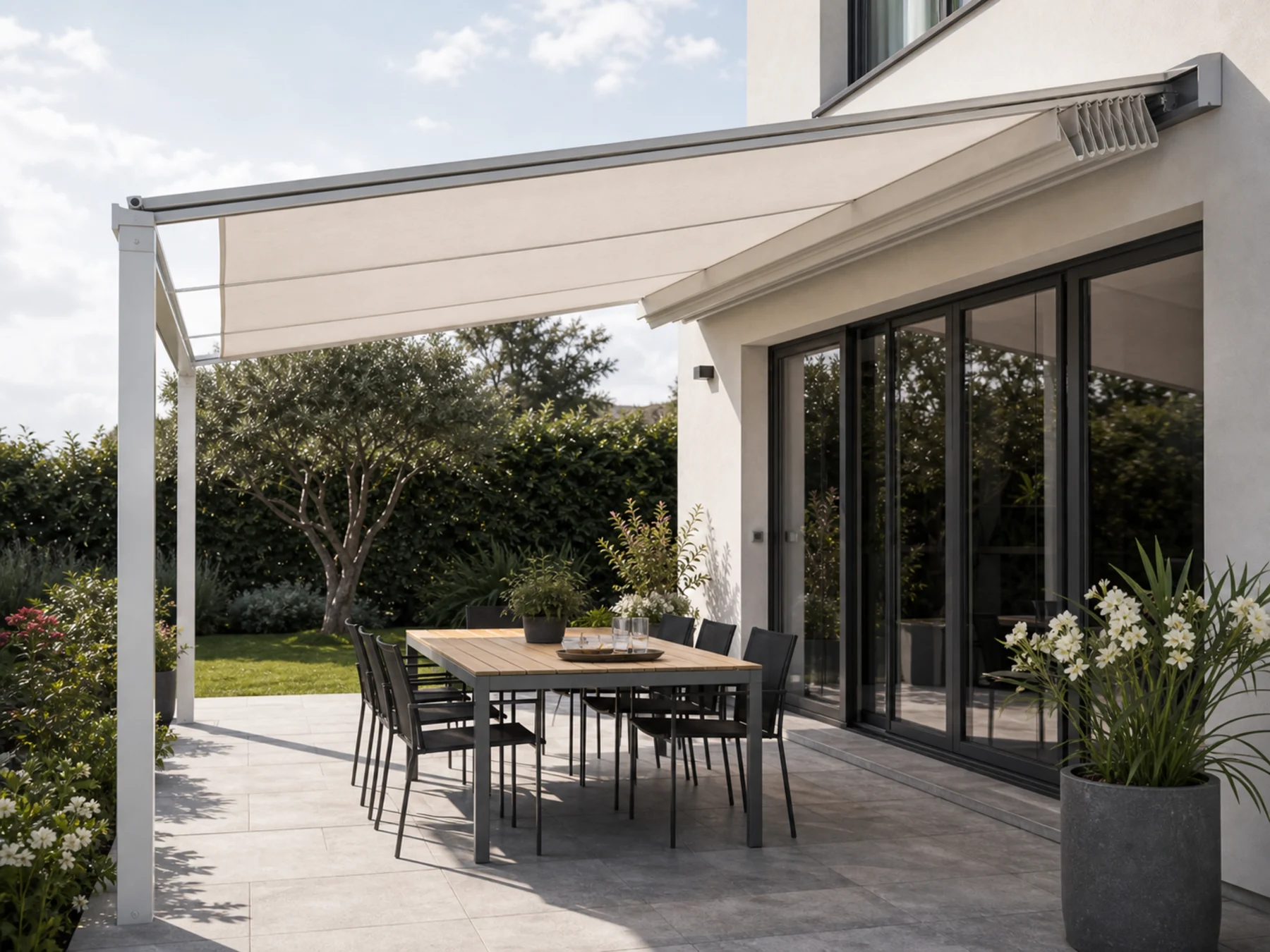

Altea Plus is the evolution of the Altea model: it adds a dedicated load-bearing structure that significantly widens its installation possibilities. The 12 × 12 cm square-section aluminium frame, made up of a front beam and two side posts, lets the system stand independently of the wall.
About the model
- Max. coverage
- 500 × 500 cm
A groove along the side guides makes the position of the structure easy to adjust, while rapid assembly speeds up on-site installation. The horizontal build works as a wall-side, complementary system for shading terraces, entrances and transitional spaces.
The structure is aluminium, fitted as standard with Tempotest Parà fabric, and protected by a QUALICOAT, or coastal-rated QUALICOAT SEASIDE, certified coating. It is available in Standard and Zip versions, motorised as standard, rated wind resistance class 1, and customisable beyond the catalogue RAL colours with additional RAL shades on request.
Features
ALTEA PLUS
- 01
Horizontal build with a dedicated self-supporting structure
- 02
12 × 12 cm square-section aluminium support tubular
- 03
Front beam and two side posts, grooved position adjustment along the side guides
- 04
Rapid assembly
- 05
Tempotest Parà fabric as standard
- 06
Customisable with different RAL finishes
- 07
QUALICOAT / QUALICOAT SEASIDE certified coating
Technical data
Technical data
Size range
200 × 200 cm – 500 × 500 cm
Structure
Aluminium, 12 × 12 cm square support tubular (front beam + 2 side posts)
Dimension (min.)
Width 200 × projection 200 cm
Dimension (max.)
Width 500 × projection 500 cm
Versions
Standard and Zip
Fabric
Tempotest Parà, as standard
Finish
RAL colours, QUALICOAT / QUALICOAT SEASIDE coating
Motorisation
Motor as standard
Wind resistance
Resistance class 1
What it is for
- Wall-independent installation where wall load capacity or geometry is limited
- Shading terraces and garden seating areas with a wall-side system
- Covering entrances, passages and transitional spaces
- Outdoor areas of hospitality and retail façades
- Sun-shading and closure systems for high-end residential buildings
Options and accessories
- Zip closure system in the side guides
- Sun and wind sensor
- Single- or multi-channel remote control
- Sun-wind remote control
- Catalogue colours: RAL 9016 gloss, RAL 8017 gloss, anthracite grey
- Further RAL shades on request
Pricing
What it costs
Indicative price from the entry configuration, fixed after an on-site survey:
from ~1.4M HUF
Entry configuration: 200 × 200 cm
The indicative figure is an order of magnitude based on the official RGM factory price list and Hungarian installation cost ranges. The final quote is set after the exact configuration and an on-site survey.
Let us plan it together
Tell us the site, the planned size and the use. We get back within 1 to 2 working days with a concrete quote or a survey appointment.
