CLIMAX SMART
The most compact bioclimatic in the Climax series

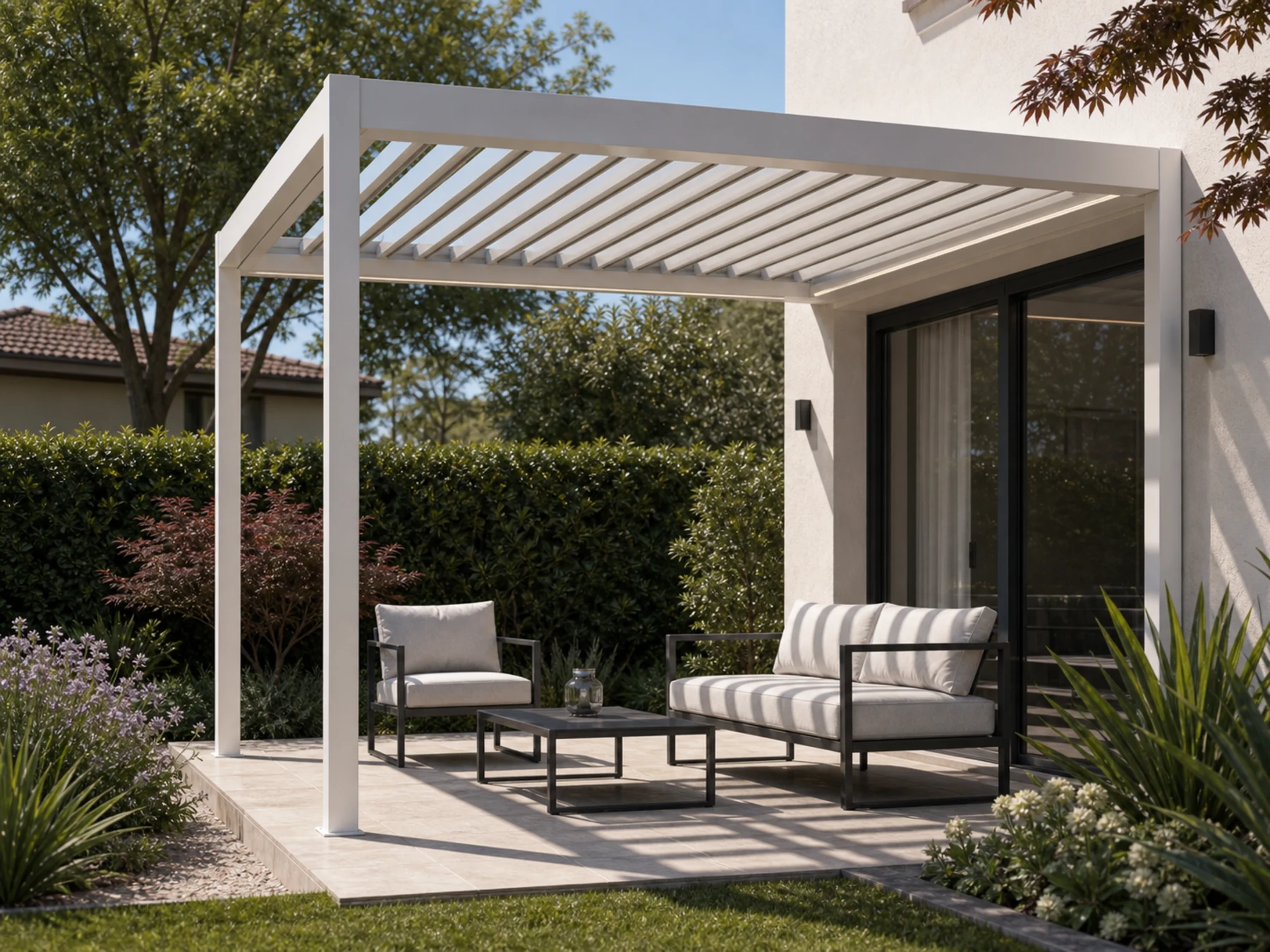

The Climax Smart is the smallest-footprint bioclimatic pergola in the Climax series, condensing the full capability of the category into a restrained structure. Its 12 × 12 cm post draws a slender, elegant silhouette, while the motorised, orientable louvre roof delivers precise thermal and light control. Its installation flexibility lets it sit comfortably on tighter terraces and across larger outdoor spaces alike.
About the model
The roof's orientable louvres close directly onto the gutter, measurably improving the seal and thermal control: shut, the surface is tight; open, it adjusts progressively between 0° and 100°. The perimeter beam stands 24 cm high, the gutter beam is 13 cm wide, and a Ø 50 mm rainwater downpipe is integrated into the post, so water is carried away without visible plumbing. The entire frame is built from aluminium UNI 6060 with INOX fixings.
The modular, quick-mount system covers a continuous surface up to 450 × 610 cm with 4 posts and up to 450 × 710 cm with 6 posts, so the compact base structure never limits the span. The surface is protected by certified QUALICOAT, or QUALICOAT SEASIDE powder coating for coastal settings, and expanded-polystyrene insulation can further reinforce thermal and acoustic performance.
Features
CLIMAX SMART
- 01
Motorised aluminium structure with tilting louvres
- 02
Orientable louvres closing directly onto the gutter
- 03
Slender 12 × 12 cm post for an elegant silhouette
- 04
Modular, quick-mount system
- 05
Expandable with closure systems and lighting
- 06
Certified QUALICOAT / QUALICOAT SEASIDE powder coating
Technical data
Technical data
Size range
200 × 210 cm – 450 × 710 cm
Structure
Aluminium UNI 6060, INOX fixings
Post
12 × 12 cm with integrated Ø 50 mm downpipe
Louvre rotation
0° - 100°
Perimeter beam height
24 cm
Gutter beam width
13 cm
Size (min.)
200 × 210 cm
Size (max.)
450 × 710 cm (6 posts)
Insulation
Expanded-polystyrene thermal and acoustic (option)
What it is for
- Tighter terraces and courtyards with constrained footprint
- Refined residential outdoor dining and lounge areas
- Hospitality terrace extensions for the full season
- Covering larger continuous spans with up to 6 posts
Options and accessories
- Closure systems: Glass Windows, Mirada, Winterly
- LED Spot and perimeter LED Line lighting (3K / 4K / 6K)
- Rain, wind, snow and temperature sensors
- 1-channel (7 functions) or 6-channel (42 functions) remote
- Bluetooth audio system and speakers
- Standard colours and further RAL shades on request
Pricing
What it costs
Every pergola is an individual configuration — the price depends on size, equipment and installation conditions:
Price on request
Entry configuration: 200 × 210 cm
We provide the exact price in a personal quote, based on the chosen configuration and an on-site survey. Requesting a quote is free of obligation.
Warranty
The manufacturer covers the product with a 2-year full warranty, 1 year on the motors; a partial warranty decreasing in value applies in years 3–5. Claims are handled through Riczu, in Hungarian.
Let us plan it together
Tell us the site, the planned size and the use. We get back within 1 to 2 working days with a concrete quote or a survey appointment.
