CLIMAX BIG
A large covered area on just four posts

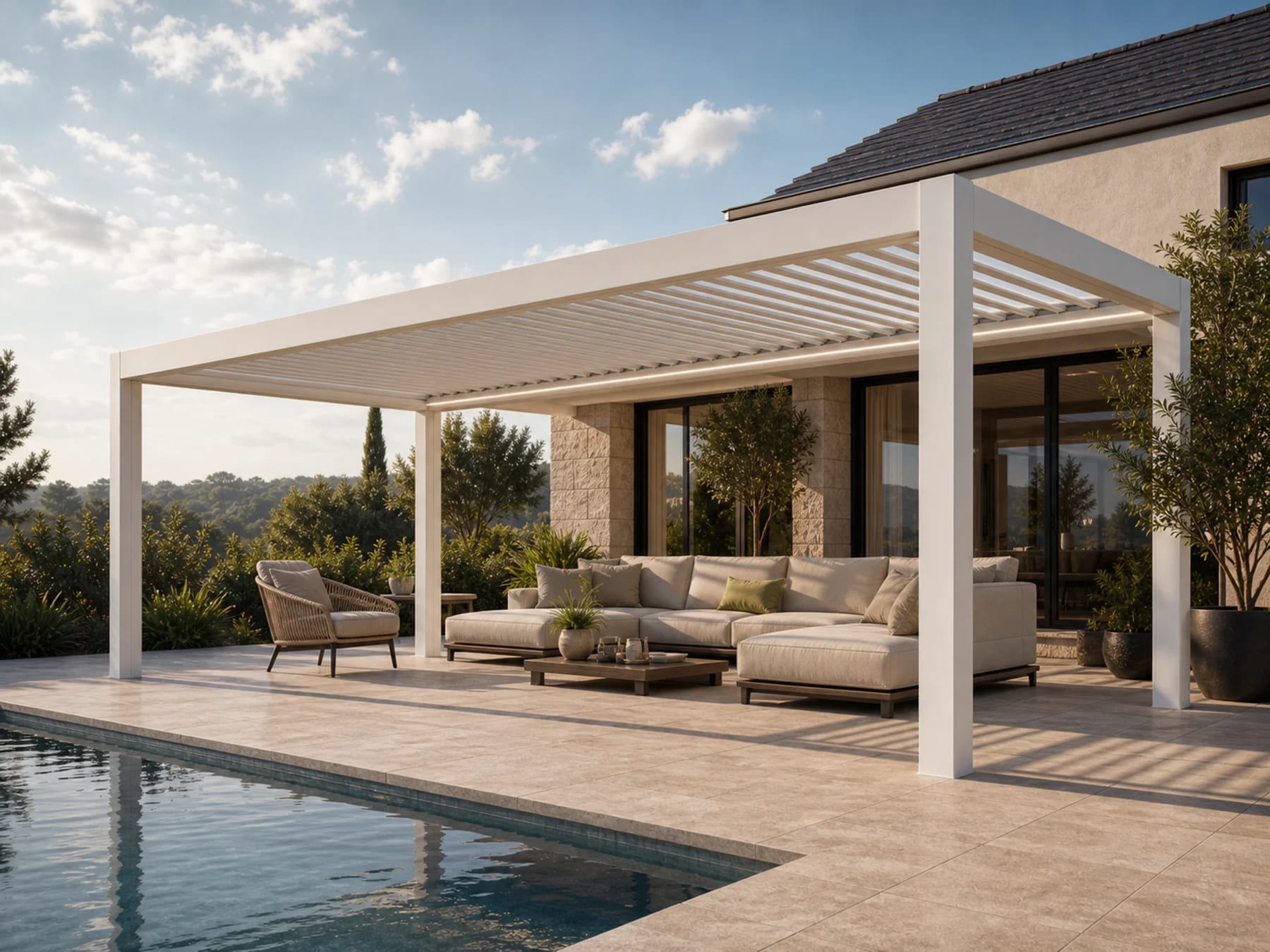

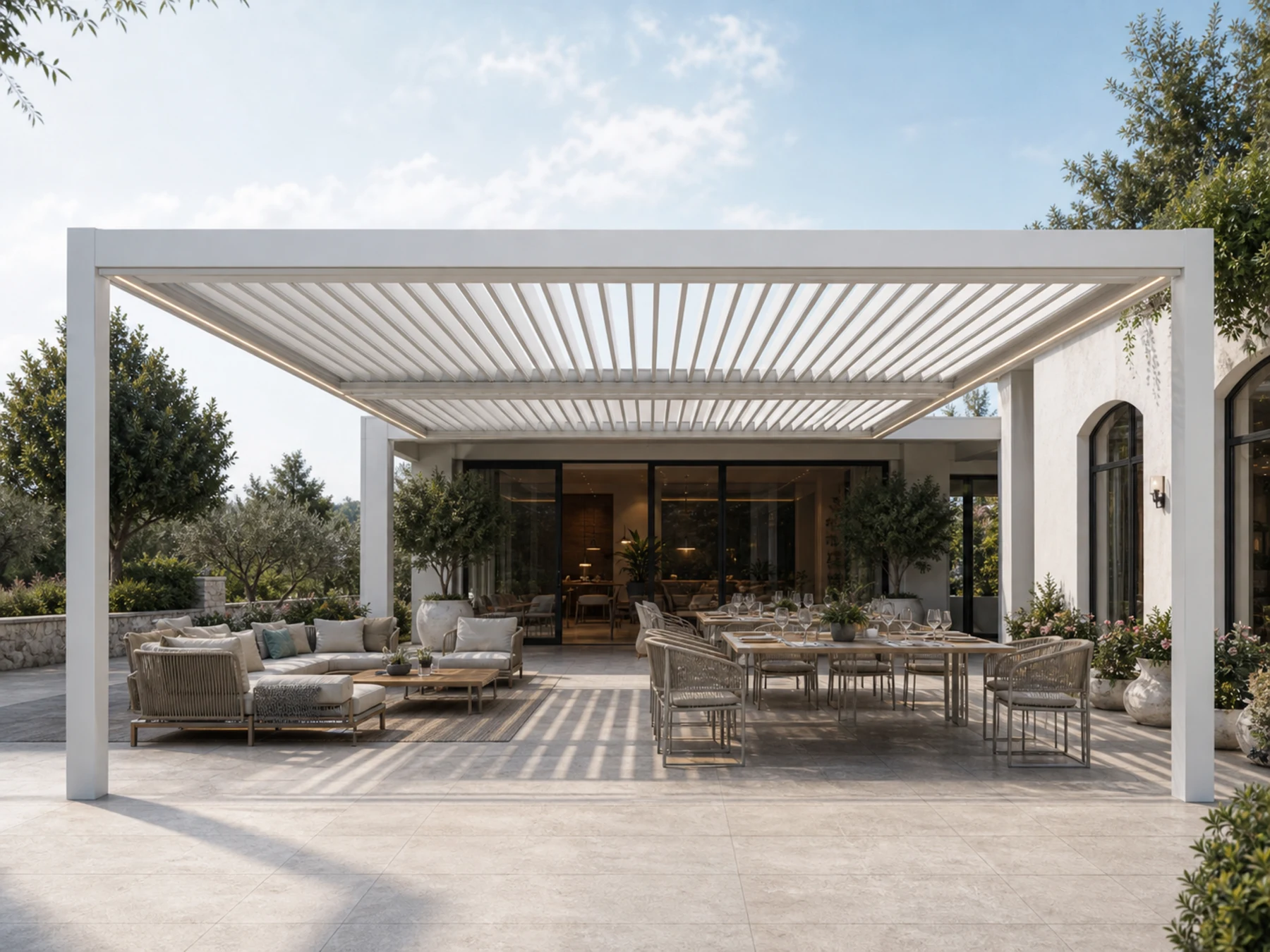

The Climax Big is the first bioclimatic louvre pergola to span 700 × 602 cm on only four posts. It carries every advantage of the Climax, while letting you extend the covered area without the obstruction of central posts. The motorised, tilting aluminium louvre roof regulates light, ventilation and rain protection in a continuous range.
About the model
The load-bearing structure is built from aluminium UNI 6060 profiles with INOX fixings, so it withstands the weather over the long term. The 16 × 16 cm post is inspectable and conceals an integrated 8.5 × 8.5 cm rainwater chamber, draining water out of sight, inside the structure. A 22 cm perimeter beam and a 16 cm gutter beam give the wide span a clean, structurally strong frame.
The roof louvres rotate between 0° and 125°, from fully open to fully closed. The modular, quick-assembly system allows numerous configurations, and the build can be completed with LED Line perimeter and LED Spot point lighting. The finish is produced with certified QUALICOAT coating, or QUALICOAT SEASIDE for coastal environments.
Factory 3D model
Drag to rotate · the manufacturer's original CAD model
Features
CLIMAX BIG
- 01
Motorised aluminium structure spanning 700 × 602 cm on only four posts
- 02
Tilting louvre roof to regulate light, ventilation and rain
- 03
Modular, quick-assembly system for numerous configurations
- 04
Extendable covered area without central posts
- 05
Customisable with closure and lighting systems
- 06
QUALICOAT / QUALICOAT SEASIDE certified coating
Technical data
Technical data
Size range
500 × 202 cm – 700 × 602 cm
Structure
Aluminium UNI 6060, INOX fixings
Minimum size
500 × 202 cm (width × depth)
Maximum size
700 × 602 cm (width × depth)
Post
Inspectable, 16 × 16 cm, with integrated 8.5 × 8.5 cm rainwater chamber
Louvre rotation
0° - 125°
Perimeter beam height
22 cm
Gutter beam width
16 cm
Thermal and acoustic insulation
Expanded polystyrene, on request
What it is for
- A large terrace or garden lounge covered in one span, free of central posts
- Outdoor seating for restaurants, cafés and hotels
- A shaded zone around a swimming pool
- The garden living room of a high-end residence
- Coastal or salt-air settings that call for enhanced corrosion protection
Options and accessories
- Closure systems: Glass Windows, Mirada and Winterly
- LED Spot point lighting and LED Line perimeter lighting (3K / 4K / 6K)
- Rain, wind, snow and temperature sensors
- Remote control: 1 channel with 7 functions or 6 channels with 42 functions
- Bluetooth audio system with built-in speakers
- Standard colours and further RAL colours on request, with QUALICOAT SEASIDE finish
Pricing
What it costs
Every pergola is an individual configuration — the price depends on size, equipment and installation conditions:
Price on request
Entry configuration: 500 × 202 cm
We provide the exact price in a personal quote, based on the chosen configuration and an on-site survey. Requesting a quote is free of obligation.
Warranty
The manufacturer covers the product with a 2-year full warranty, 1 year on the motors; a partial warranty decreasing in value applies in years 3–5. Claims are handled through Riczu, in Hungarian.
Let us plan it together
Tell us the site, the planned size and the use. We get back within 1 to 2 working days with a concrete quote or a survey appointment.
