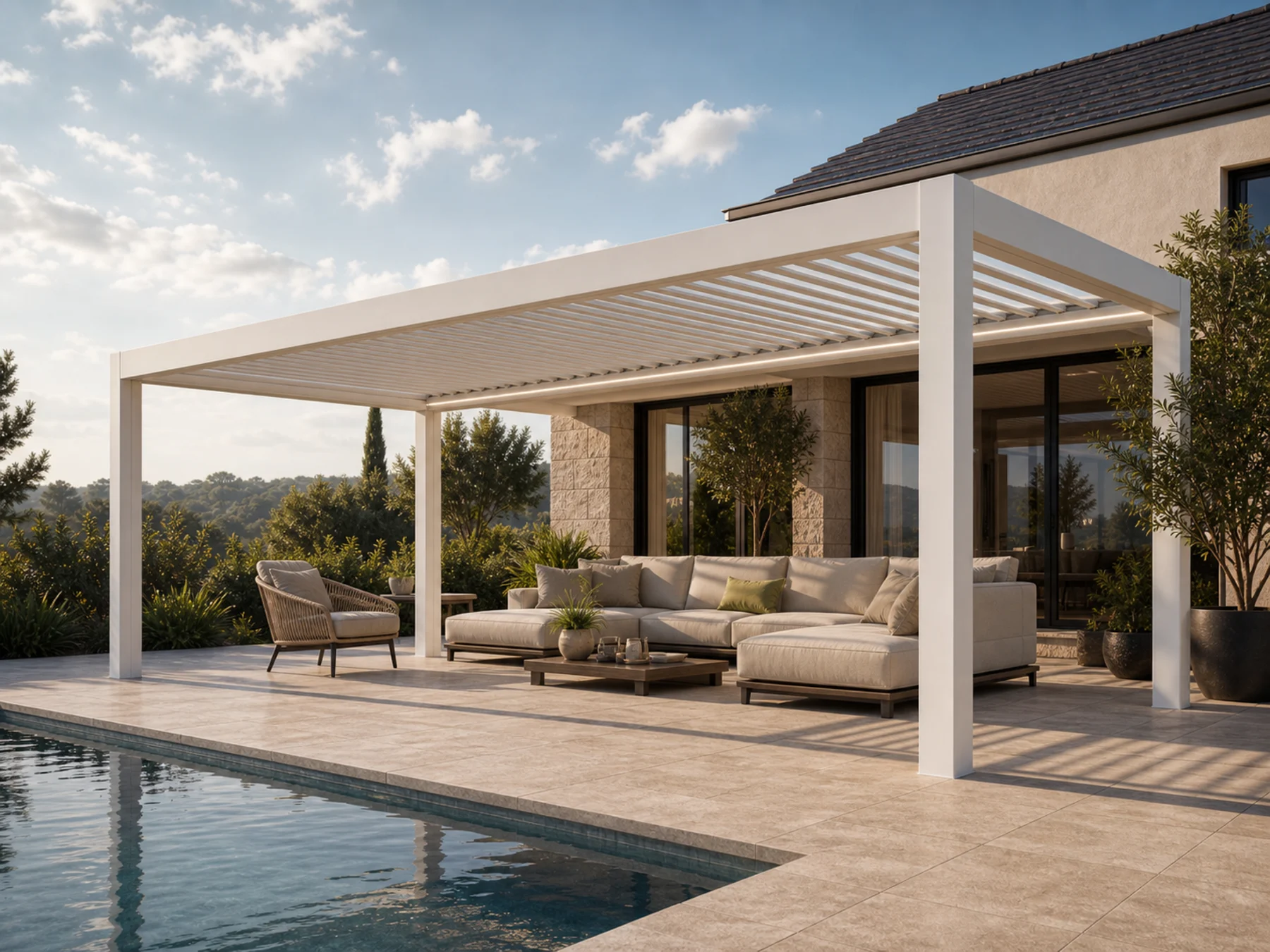

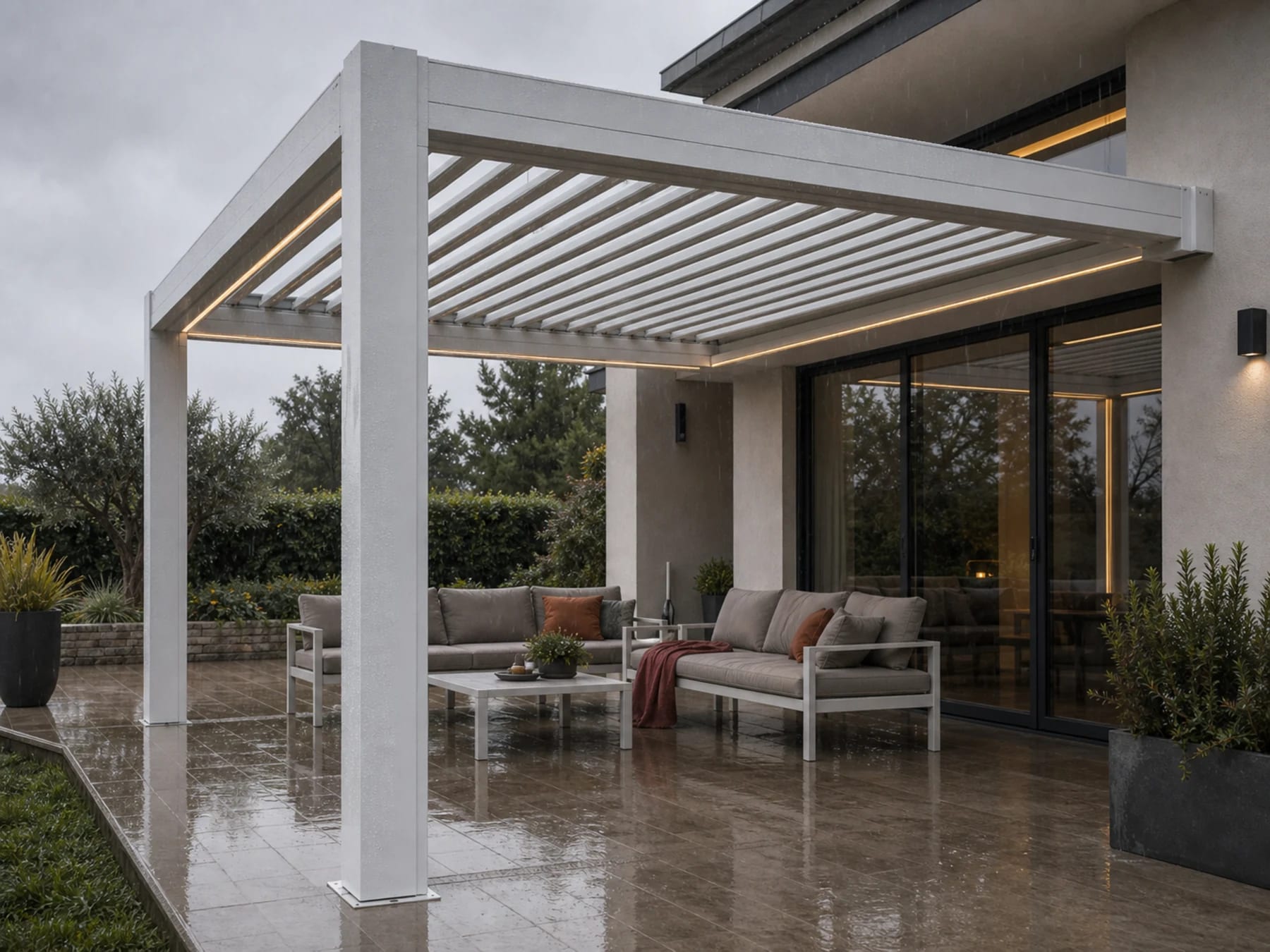

CLIMAX FLOW
Bioclimatic pergola built for the harshest weather
The Climax Flow carries forward the Climax design language with a reinforced frame and higher-capacity drainage. Wider, more solid posts and an upgraded rainwater system make it dependable even in the most adverse conditions. A motorised aluminium roof with orientable louvres that moves from closed cover to open sky in minutes.
About the model
- Max. coverage
- 500 × 720 cm
The 20.5 × 20.5 cm posts house an enlarged 13 × 13 cm integrated rain chamber that makes the structure rainproof without breaking its clean architectural lines. With a 22 cm perimeter beam and a 20.5 cm gutter beam, the proportioned, robust frame spans up to 500 × 640 cm in a four-post module and reaches 500 × 720 cm in a six-post module as a single continuous surface.
Features
CLIMAX FLOW
- 01
Motorised aluminium structure
- 02
Louvres orientable from 0° to 125°
- 03
Enlarged rain chamber integrated into the posts
- 04
Modular system with rapid assembly
- 05
Extendable with closing and lighting systems
- 06
QUALICOAT / QUALICOAT SEASIDE certified coating
Technical data
Technical data
Size range
200 × 200 cm – 500 × 720 cm
Structure
Aluminium UNI 6060, INOX fixings
Post
Inspectable, 20.5 × 20.5 cm, with integrated 13 × 13 cm rain chamber
Louvre rotation
0°–125°
Perimeter beam height
22 cm
Gutter beam width
20.5 cm
Size (min–max)
200 × 200 cm to 500 × 720 cm
Insulation
Available with expanded polystyrene
Coating
QUALICOAT / QUALICOAT SEASIDE, no silicone
What it is for
- Rainy, windy, exposed terraces and garden rooms
- Restaurant and café terraces sized for the full season
- Shaded, ventilated cover for pool and wellness areas
- Wide-span residential terraces under a single continuous roof
Options and accessories
- Closing systems: Soraya, Glass Windows, Mirada, Winterly
- LED Spot points and perimeter LED Line (3K / 4K / 6K)
- Rain, wind, snow and temperature sensors
- 1-channel (7 functions) or 6-channel (42 functions) remote
- Bluetooth audio system with built-in speakers
- Standard colours and any RAL shade on request
Pricing
What it costs
Indicative price from the entry configuration, fixed after an on-site survey:
from ~4.3M HUF
Entry configuration: 200 × 200 cm
The indicative figure is an order of magnitude based on the official RGM factory price list and Hungarian installation cost ranges. The final quote is set after the exact configuration and an on-site survey.
Let us plan it together
Tell us the site, the planned size and the use. We get back within 1 to 2 working days with a concrete quote or a survey appointment.
